A low retaining wall has one job: hold back soil without moving. In regions with deep frost, heavy clay and aggressive spring runoff, the three most common residential options (wire gabions, segmental concrete block and pressure-treated timber) handle that job in very different ways.
This comparison looks at walls between roughly 18 inches and 3 feet high, the range most homeowners and small landscaping crews tackle without an engineer. Taller walls are a separate conversation. Many municipalities in Canada and the northern United States require an engineered design once a retaining wall passes about one metre, and some ask for a permit well below that height.
How does each wall resist soil pressure?
All three are gravity walls at this scale, meaning their own mass and footprint keep them upright. The difference lies in how that mass behaves once the ground starts to move.
Segmental concrete block systems from manufacturers such as Allan Block and Techo-Bloc rely on interlocking units, a slight backward lean called setback, and a compacted gravel base. They are rigid. If the base shifts, the courses above can crack, bulge or drift out of alignment.
Timber walls use stacked 6×6 or 8×8 treated lumber, usually tied back into the slope with perpendicular anchors called deadmen. They are the lightest option per linear foot and carry the least mass.

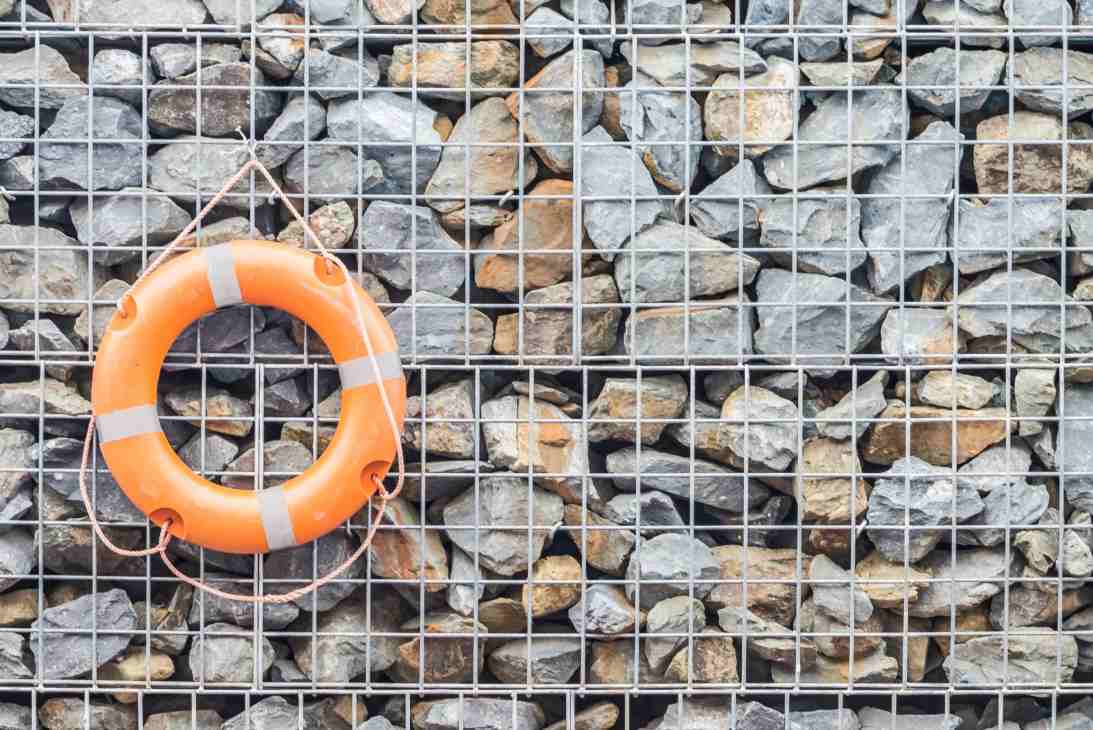

Gabions are welded or woven wire baskets filled with stone, and welded versions are commonly specified against ASTM A974. A single 36 x 36 x 18 inch basket packed with dense rock weighs roughly 1,300 to 1,500 pounds. Because the fill is loose and the mesh flexes slightly, a gabion can settle a little without structural failure.
Which option copes best with frost and drainage?
This is where the differences get sharp. Frost heave damages walls when water trapped behind or beneath them freezes and expands. The standard defence for any wall type is drainage: clear stone behind the wall, a perforated pipe at the base, and filter fabric between the native soil and the backfill.
Gabions carry a built-in advantage here, since the wall itself is permeable. Water passes straight through the voids between stones instead of building hydrostatic pressure behind the face. Welded baskets are typically sold in two grades, a lighter 4 mm wire for decorative walls and a heavier 5 mm wire for retaining work, and the product listings on stonedecorative.com show how wire gauge, mesh opening and basket dimensions shift from one application to another. The Galfan coating used on many baskets, a zinc and aluminum alloy, generally resists corrosion better than standard galvanizing, which matters wherever road salt splashes up from a driveway.
Concrete block walls depend entirely on the drainage layer behind them. Built properly, they perform well for decades. Skip the pipe or use native clay as backfill, and one wet spring can push the top courses forward within a few seasons.
Timber tolerates a bit of movement, but constant moisture is its enemy. Even ground-contact treated lumber tends to rot at the base faster on a wet, shaded slope, and many timber walls start showing their age within 15 to 20 years.
Salt deserves a separate mention. Along driveways and sidewalks that get treated all winter, chloride-laden meltwater soaks into whatever sits at the edge of the pavement. Concrete block with a lower-quality face mix can show scaling and spalling after several seasons of that exposure. Timber absorbs the salty water and dries out slowly. Gabion fill stone is indifferent to salt, which leaves the wire coating as the only component to watch.
Clay soils add another twist. Heavy clay holds water for days after a storm and expands noticeably when it freezes, so the pressure against the back of any wall climbs sharply in late winter. On clay sites, widening the clear-stone drainage zone behind the wall to at least 12 inches is cheap insurance, whatever material forms the face.
What does installation actually involve?
Base preparation is common to all three. Dig below the topsoil, lay and compact 4 to 6 inches of crushed stone, and check for level along the full length before placing anything on top.
From there, timber is the fastest to build with basic tools: a saw, a drill and long spikes. Block demands the most precision, with a perfectly level first course and compaction every few inches of backfill. Gabions sit between the two. The panels arrive flat, clip or spiral-bind together on site, and are filled in lifts.
Two details decide whether a gabion wall looks professional. First, fill stone must be larger than the mesh opening; with a standard 3 x 3 inch mesh, stones in the 4 to 6 inch range stay put. Second, internal bracing wires across each basket keep the face from bulging as it fills. Many installers hand-place attractive stone on the visible face and use cheaper or recycled material behind it to control cost.
How do costs compare over time?
Upfront, timber usually wins. Block and gabions land closer together, with gabion cost depending heavily on the fill. Local quarry rock keeps the price down, while polished or colour-sorted stone raises it quickly.
Over 25 years, the math shifts. Timber will likely need rebuilding at least once. A well-built block wall should last, but repairing a failed section means dismantling the courses above it. Gabions rarely need more than an occasional adjustment to a sagging face, and a damaged basket can be opened and refilled without disturbing its neighbours.
Labour matters as well. A timber wall is often a one-weekend project for two people. Block and gabion walls of the same length can take twice as long, mostly because of base preparation and, for gabions, the sheer tonnage of stone that has to be moved by hand or with a compact loader.
So which one should you choose?
Choose timber for short-term or budget-driven projects on dry, well-drained ground, especially where you expect to redesign the yard within a decade.
Choose segmental block when you want a clean, uniform face, curves or integrated steps, and you are willing to invest in careful base and drainage work.
Choose gabions when drainage is poor, the site sees heavy frost, or you want the wall itself to read as a design feature. They also suit anyone interested in reusing broken concrete or salvaged stone as core fill, and they pair well with modern architecture where exposed steel and raw stone are part of the look.
One practical note applies to all three. Before digging, run the height, soil type and any nearby structures past your municipality. A 30-inch wall at the edge of a patio and a 30-inch wall holding back a driveway are two very different projects, even if they look identical on paper.
